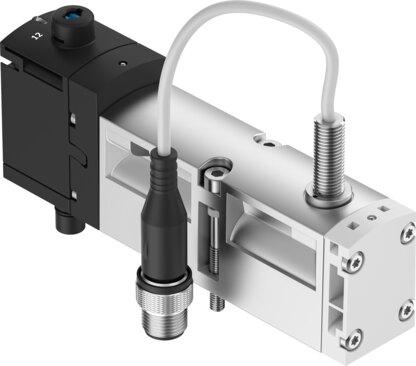

Reference imageConfirm configuration by manufacturer part number.
Festo
570850
Air solenoid valve VSVA-B-M52-MZD-A1-1T1L-APX-0.5
The Festo 570850 is a 26 mm wide 5/2-way monostable industrial component featuring an electrical actuation type, piloted control, and a piston gate valve structural design with a soft sealing principle. Operating at 24V DC within an operating pressure range of -0.09 MPa to 1 MPa, this unit delivers a normal nominal flow rate of 1100 l/min through a G1/4 pneumatic working port on a size 26 mm sub-base as per ISO 15407-2. It includes a mechanical spring reset method, adjustable exhaust air function via a throttle plate or individual sub-base, internal or external pilot air supply ports, and a mechanical manual override that is detenting, non-detenting, or covered. Rated to IP65 and NEMA 4 degree of protection with KC-EMV characters, CE marking per the EU EMC directive, and UKCA marking, it supports any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570850
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570850.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1100 l/min
- Pneumatic working port
- Sub-base, size 26 mm as per ISO 15407-2 | G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 9 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Flow direction
- Any
- Measuring principle
- Inductive
- Lap
- Positive overlap
- Sensor reverse polarity protection
- For all electrical connections
- Signal status display
- LED
- Switching position sensing
- Normal position with sensor
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 570850. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
