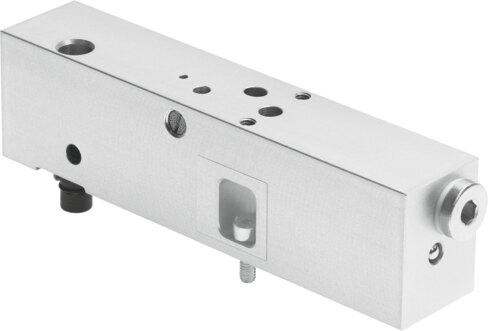

Name: Festo 570851 Intermediate plate VABF-S4-1-S
Brand: Festo

Intermediate plate VABF-S4-1-S

The Festo 570851 is an industrial component featuring a width of 26 mm and built to ISO 15407-2 norms with a wrought aluminum alloy plate. Operating at 0.3 MPa to 1 MPa (3 bar to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], it delivers IP65 and NEMA 4 protection across an ambient temperature range of -5 °C to 50 °C. Weighing 295 g with CRC 0 corrosion resistance, this unit mounts in any position via vertical stacking on a manifold or individual sub-base and carries CE and UKCA markings. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 570851
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 570851.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 26 mm
Based on norm: ISO 15407-2
Mounting position: Any
Operating pressure: 0.3 MPa...1 MPa | 3 bar...10 bar
CE marking (see declaration of conformity): As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Degree of protection: IP65 | NEMA 4
Ambient temperature: -5 °C...50 °C
Product weight: 295 g
Vertical stacking mounting type: On manifold sub-base | On individual sub-base
Pilot air port 14: Sub-base, size 26 mm as per ISO 15407-2
Pneumatic connection 1: Sub-base, size 26 mm as per ISO 15407-2
Pneumatic connection 4: Sub-base, size 26 mm as per ISO 15407-2
Pneumatic connection 5: Sub-base, size 26 mm as per ISO 15407-2
Note on materials: RoHS compliant
Plate material: Wrought aluminum alloy

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 570851. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
