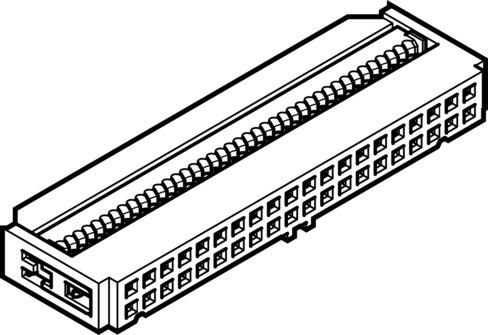

Reference imageConfirm configuration by manufacturer part number.
Festo
570895
Plug connector NECU-FCG40-K
The Festo 570895 is an industrial component featuring a straight cable outlet and a square socket electrical connection 1 utilizing connection pattern FC with 40 pins and snap-locking mounting. Electrical connection 2 uses insulation-displacement contact supporting a DC operating voltage range of 0 V to 30 V, a current rating of 1.5 A at 40 °C, and a nominal conductor cross section of 0.13 mm² or AWG26. Constructed with a reinforced PBT housing and gold-plated bronze pin contacts, this 5 g part conforms to EN 60603-13 with an IP40 degree of protection, 50 contact durability cycles, and an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570895
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570895.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 60603-13
- Contact durability
- 50
- Cable outlet
- Straight
- Product weight
- 5 g
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- Connection pattern FC
- Electrical connection 1, number of pins/wires
- 40
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, connection technology
- Insulation-displacement contact
- DC operating voltage range
- 0 V...30 V
- Current rating at 40° C
- 1.5 A
- Nominal conductor cross section
- 0.13 mm² | AWG26
- Degree of protection
- IP40
- Ambient temperature
- -5 °C...50 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Housing material
- PBT-reinforced
- Material of pin contacts
- Bronze | Gold-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 570895. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
