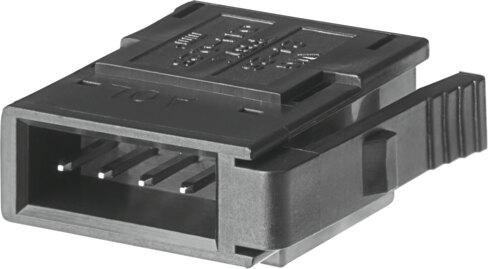

Reference imageConfirm configuration by manufacturer part number.
Festo
570922
Plug NECU-S-ECG4-HX-Q3
The Festo 570922 is an industrial component featuring a snap-in mounting type and a 4-pin straight plug insulation displacement connector in a rectangular design with gold-plated pin contacts. It operates within a 0 V to 30 V DC range, a current rating of 3 A at 40 °C, a surge resistance of 0.8 kV, and holds c UL us - recognized (OL) certification. Constructed with a PBT and PC housing, it offers IP40 protection, a contamination level of 2, a low corrosion stress CRC rating of 1, and operates in ambient temperatures from -20 °C to 60 °C while complying with RoHS and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 570922
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 570922.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- c UL us - recognized (OL)
- Contact durability
- 1
- Type of mounting
- Snap-in
- Electrical connection
- 4-pin | Straight plug/insulation displacement connector | Rectangular design
- DC operating voltage range
- 0 V...30 V
- Current rating at 40° C
- 3 A
- Surge resistance
- 0.8 kV
- Individual wire diameter
- 0.07 mm
- Wire diameter
- 0.8 mm...1 mm
- Connection cross section
- 0.14 mm²
- Degree of protection
- IP40
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Contamination level
- 2
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PBT | PC
- Material of pin contacts
- Gold-plated
- Permissible insulating sheath
- PP | PVC | TPE-E
