Festo
571017

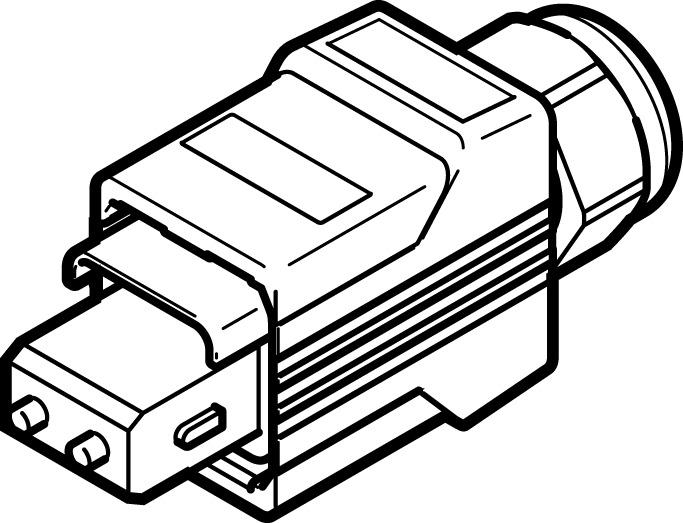

Plug FBS-SCRJ-PP-GS
This industrial component from Festo features a PROFINET FOC fieldbus interface and accommodates 980/1000 µm polymer fiber Ethernet cables with individual wire diameters of 2.2 mm and approved cable diameters ranging from 6.5 mm to 9.5 mm. Housed in nickel-plated die-cast zinc with NBR and TPE seals, the 60 g unit provides IP65 and IP67 degrees of protection per IEC 60529 while operating within ambient and storage temperatures of -40 °C to 70 °C. The RoHS-compliant device achieves VDMA24364-B2-L LABS conformity and a CRC rating of 1 for low corrosion stress. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 571017
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 571017.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product weight
- 60 g
- Note on fieldbus interface
- PROFINET FOC
- Ethernet cable specification
- Fiber-optic cable | 980/1000 µm polymer fiber | Individual wire diameter: 2.2 mm
- Approved cable diameter
- 6.5 mm...9.5 mm
- Degree of protection
- IP65 | IP67 | as per IEC 60529
- Ambient temperature
- -40 °C...70 °C
- Storage temperature
- -40 °C...70 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS-compliant
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- Die-cast zinc | Nickel-plated
- Seals material
- NBR | TPE
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 571017. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
