571052

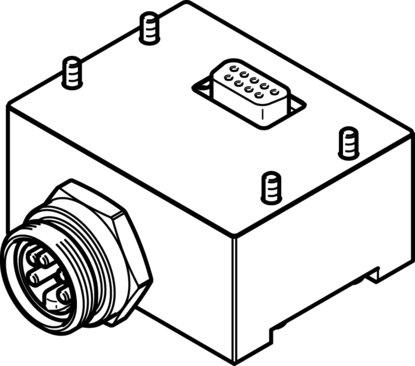

Name: Festo 571052 Manifold block CPX-AB-1-7/8-DN
Brand: Festo

Manifold block CPX-AB-1-7/8-DN

Engineered by Festo, part number 571052 is an industrial component featuring a wrought aluminum alloy housing with dimensions of 65.5 mm x 30.5 mm x 62 mm and a product weight of 205 g. This unit mounts via through-hole and offers IP65 and IP67 protection ratings, a corrosion resistance class of CRC 2, and VDMA24364-B2-L LABS conformity while operating in ambient temperatures from -5 °C to 50 °C and storage temperatures from -20 °C to 70 °C. Electrical connectivity is provided via a 5-pin, 7/8" round plug connector alongside a 9-pin Sub-D plug socket fieldbus interface, and the materials are RoHS compliant. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 571052
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 571052.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: 65.5 mm x 30.5 mm x 62 mm
Type of mounting: With through-hole
Product weight: 205 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: IP65 | IP67
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS compliant
Housing material: Wrought aluminum alloy
Fieldbus interface: Sub-D, 9-pin, plug socket
Electrical connection: 5-pin | 7/8" round plug connector

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 571052. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
