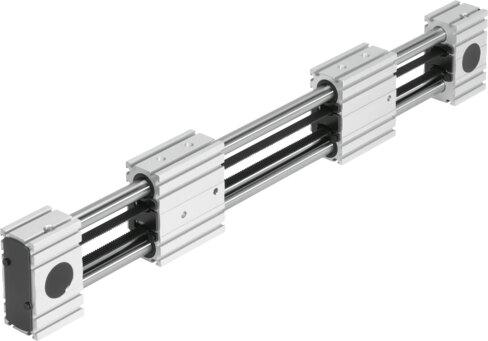

Reference imageConfirm configuration by manufacturer part number.
Festo
571059
Belt driven linear actuator ELGG-TB-...-45- -
Engineered as an electromechanical linear axis with a toothed belt, this Festo industrial component features a size 45 footprint and a variable working stroke ranging from 50 mm to 900 mm. It delivers a maximum acceleration of 50 m/s², speeds between 1 m/s and 3 m/s, a repetition accuracy of ±0.1 mm, and a 100% duty cycle when paired with a stepper or servo motor. The assembly incorporates a drive pinion effective diameter of 24.83 mm, a toothed belt pitch of 3 mm, a toothed belt elongation of 0.08%, a maximum driving torque of 1.24 Nm, and a maximum force Fy of 100 N. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 571059
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 571059.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 24.83 mm
- Working stroke
- 50 mm...900 mm
- Size
- 45
- Toothed belt elongation
- 0.08 %
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide | Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Max. acceleration
- 50 m/s²
- Max. speed
- 1 m/s...3 m/s
- Repetition accuracy
- ±0.1 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP20
- Ambient temperature
- -10 °C...50 °C
- 2nd moment of area Iy
- 15700 mm⁴
- 2nd moment of area Iz
- 17940 mm⁴
- Max. driving torque
- 1.24 Nm
- Max. force Fy
- 100 N
- Max. force Fz
- 100 N
- Max. no-load resistance to shifting
- 16.1 N
- Max. feed force Fx
- 100 N
- No-load driving torque
- 0.2 Nm
- Mass moment of inertia JH per meter of stroke
- 0.011 kgcm²
- Mass moment of inertia JL per kg of payload
- 1.54 kgcm²
- Feed constant
- 78 mm/U
- Reference service life
- 2500 km
- Additional moving mass per 10 mm stroke
- 0.69 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 571059. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
