Festo
571060

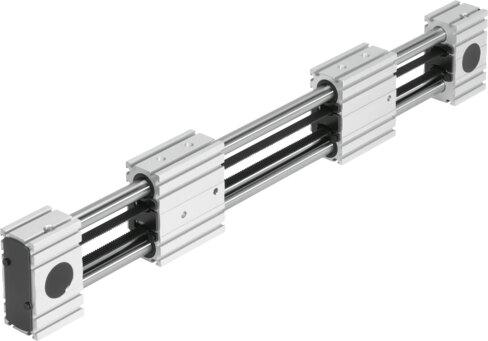

Belt driven linear actuator ELGG-TB-...-55- -
The Festo 571060 is an electromechanical linear axis of size 55 featuring a toothed belt with a 3 mm pitch, a 28.65 mm drive pinion effective diameter, and a working stroke adjustable from 50 mm to 1200 mm. Operating with a plain-bearing or recirculating ball bearing guide in any mounting position, this unit delivers a maximum acceleration of 50 m/s², speeds ranging from 1 m/s to 3 m/s, and a repetition accuracy of ±0.1 mm under a 100% duty cycle. It accommodates stepper or servo motors up to a max driving torque of 5 Nm and max force Fy of 300 N, while maintaining IP20 protection and VDMA24364 Zone III LABS conformity within an ambient temperature range of -10 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 571060
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 571060.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 28.65 mm
- Working stroke
- 50 mm...1200 mm
- Size
- 55
- Toothed belt elongation
- 0.21 %
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide | Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Max. acceleration
- 50 m/s²
- Max. speed
- 1 m/s...3 m/s
- Repetition accuracy
- ±0.1 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP20
- Ambient temperature
- -10 °C...50 °C
- 2nd moment of area Iy
- 38300 mm⁴
- 2nd moment of area Iz
- 41180 mm⁴
- Max. driving torque
- 5 Nm
- Max. force Fy
- 300 N
- Max. force Fz
- 300 N
- Max. no-load resistance to shifting
- 27.9 N
- Max. feed force Fx
- 350 N
- No-load driving torque
- 0.4 Nm
- Mass moment of inertia JH per meter of stroke
- 0.019 kgcm²
- Mass moment of inertia JL per kg of payload
- 2.05 kgcm²
- Feed constant
- 90 mm/U
- Reference service life
- 2500 km
- Additional moving mass per 10 mm stroke
- 0.92 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 571060. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
