Festo
571280

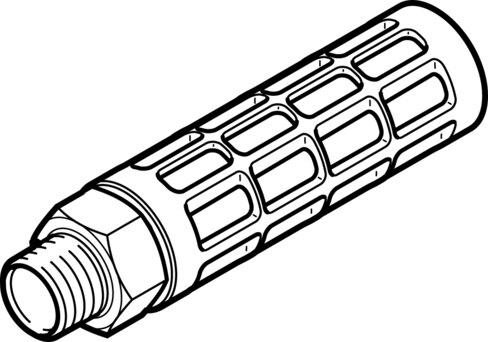

Pneumatic muffler U-1-B-NPT
The Festo 571280 is an industrial component featuring an aluminum housing and screwed plug, a 1 NPT pneumatic connection, and a product weight of 233 g. This part operates within an ambient temperature range of -10 °C to 70 °C, supports an operating pressure of 0 MPa to 1 MPa (0 bar to 10 bar, 0 psi to 145 psi), and delivers a flow rate with respect to atmosphere of 15102 l/min using compressed air as per ISO 8573-1:2010 [7:-:-]. It offers any mounting position, a noise level of 80 dB(A), a corrosion resistance class of 1, and RoHS-compliant materials that allow lubricated operation. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 571280
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 571280.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Operating pressure for entire temperature range
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Flow rate with respect to atmosphere
- 15102 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 80 dB(A)
- Ambient temperature
- -10 °C...70 °C
- Product weight
- 233 g
- Pneumatic connection
- 1 NPT
- Cushioning insert material
- Protective grounding
- Material of screwed plug
- Aluminum
- Note on materials
- RoHS compliant
- Housing material
- Aluminum
