571334

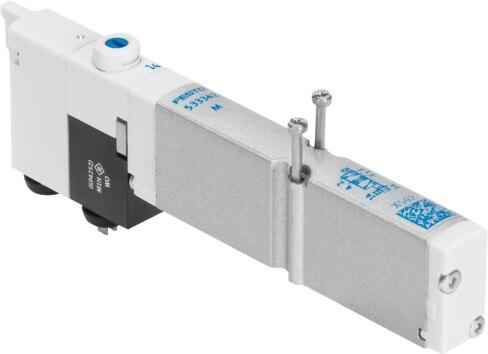

Name: Festo 571334 Air solenoid valve VMPA1-M1H-MS-PI
Brand: Festo

Air solenoid valve VMPA1-M1H-MS-PI

The Festo part number 571334 is a 5/2-way monostable industrial component featuring a 10 mm valve size, a piston gate valve structural design, and a soft sealing principle. It operates at 24V DC with an operating pressure range of -0.09 MPa to 0.8 MPa (-0.9 bar to 8 bar), delivers a normal nominal flow rate of 360 l/min, and includes mechanical spring reset, piloted control with reversible flow direction, and an IP65 degree of protection when mounted. Additional verified specifications consist of detenting and non-detenting manual override, positive overlap lap, a signal status display, a pilot pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), vacuum suitability, c UL us recognition, and any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 571334
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 571334.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Electrical
Valve size: 10 mm
Normal nominal ow rate (normalized to DIN 1343): 360 l/min
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...0.8 MPa | -0.9 bar...8 bar
Structural design: Piston gate valve
Reset method: Mechanical spring
Certication: c UL us - recognized (OL)
Degree of protection: IP65 | In mounted state | As per IEC 60529
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting
Type of control: Piloted
Flow direction: Reversible
Lap: Positive overlap
Signal status display: Yes
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Suitability for vacuum: Yes
Standard nominal ow rate with QS-6: 360 l/min
Max. switching frequency: 2 Hz
Switching time oﬀ: 27 ms
On switching time: 10 ms
Max. positive test pulse with 0 signal: 400 µs
Max. negative test pulse on 1 signal: 200 µs
Permissible voltage uctuations: +/- 25%
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 571334. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
