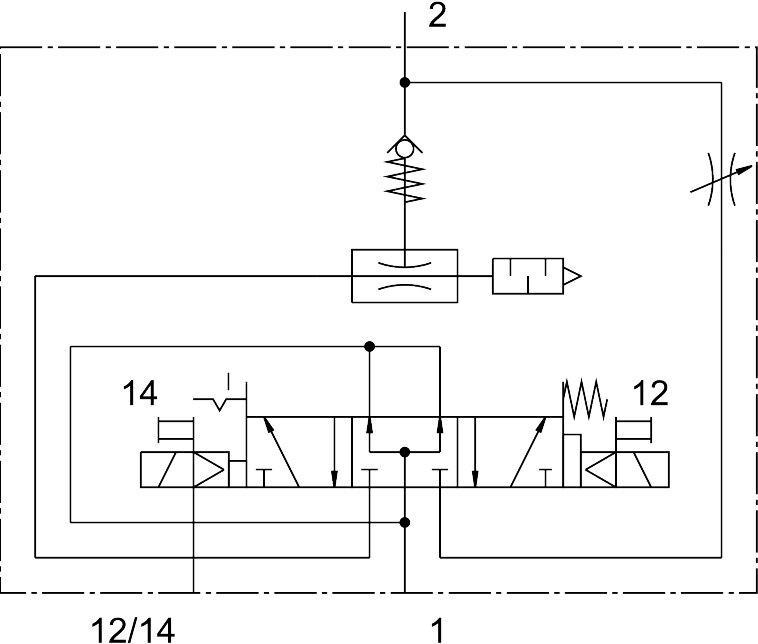

Reference imageConfirm configuration by manufacturer part number.
Festo
571425
Vacuum generator VABF-S4-1-V2B1-C-VH-20
The Festo part number 571425 is a non-modular industrial component featuring a 2 mm Laval nozzle nominal width, an open muffler construction type, and reverse polarity protection across all electrical connections. It operates within a 4 bar to 8 bar operating pressure range at a 6 bar nominal operating pressure and a DC operating voltage range of 21.6 V to 26.4 V, utilizing a piezoresistive measuring principle for relative pressure with a threshold value comparator switching function. Integrated functions include an electric ejector pulse valve, flow control valve, electric on-off valve, electric air-saving function, check valve, open muffler, and vacuum switch alongside a 5/3-way pressurized valve function and N.O. contact switching element function. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 571425
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 571425.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 2 mm
- Muffler construction type
- Open
- Reverse polarity protection
- for all electrical connections
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Standard
- Manual override
- Detenting | Non-detenting | Covered
- Structural design
- Non-modular
- Short-circuit protection
- Yes
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching function
- Threshold value comparator
- Integrated function
- Ejector pulse valve, electric | Flow control valve | Electric on-off valve | Electric air-saving function | Check valve | Muffler open | Vacuum switch
- Valve function
- 5/3-way, pressurized
- Switching element function
- N.O. contact
- Setting range hysteresis
- -0.9 bar...0 bar
- Setting range threshold value
- -0.999 bar...0 bar
- Operating pressure
- 4 bar...8 bar
- Nominal operating pressure
- 6 bar
- DC operating voltage range
- 21.6 V...26.4 V
- Inductive protective circuit
- Adapted to MZ, MY and ME coils
- Idle current
- 50 mA...150 mA
- Max. output current
- 50 mA
- Duty cycle
- 100%
- Voltage drop
- 1.5 V
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 571425. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
