Festo
571435

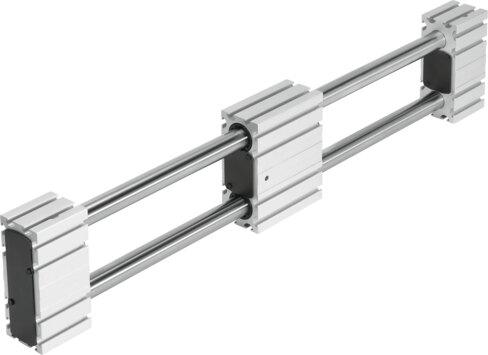

Guide axis ELFR-...-35- -
The Festo 571435 is a guide axis without a drive featuring a size 35 designation and a variable working stroke between 50 mm and 800 mm. Built with a plain-bearing guide or recirculating ball bearing, this component supports a maximum acceleration of 50 m/s², speeds from 1 m/s to 3 m/s, and maximum forces Fy and Fz of 50 N. It operates in ambient temperatures from -10 °C to 50 °C with an IP20 degree of protection, a VDMA24364 Zone III LABS conformity, and a CRC of 0. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 571435
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 571435.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 50 mm...800 mm
- Size
- 35
- Mounting position
- Any
- Guide
- Plain-bearing guide | Recirculating ball bearing
- Structural design
- Guide axis without drive
- Max. acceleration
- 50 m/s²
- Max. speed
- 1 m/s...3 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP20
- Ambient temperature
- -10 °C...50 °C
- 2nd moment of area Iy
- 3770 mm⁴
- 2nd moment of area Iz
- 4190 mm⁴
- Max. force Fy
- 50 N
- Max. force Fz
- 50 N
- Max. no-load resistance to shifting
- 3 N
- Reference service life
- 5000 km
- Additional moving mass per 10 mm stroke
- 0 g
- Basic weight with 0 mm stroke
- 1200 g
- Additional weight per 10 mm stroke
- 23 g
- Prole material
- Wrought aluminum alloy | Anodized
- Note on materials
- RoHS compliant
- Drive cover material
- Wrought aluminum alloy | Anodized
- Guide rail material
- Steel
- Slide material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 571435. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
