Festo
571436

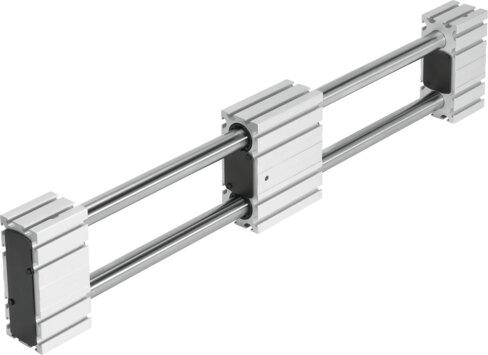

Guide axis ELFR-...-45- -
The Festo part number 571436 is a guide axis without a drive featuring a size 45 designation, a working stroke ranging from 50 mm to 1000 mm, and options for a plain-bearing guide or a recirculating ball bearing. It supports an ambient temperature range of -10 °C to 50 °C, a maximum speed between 1 m/s and 3 m/s, a maximum acceleration of 50 m/s², and any mounting position with a degree of protection of IP20. The unit provides a reference service life of 5000 km, a basic weight of 2670 g at 0 mm stroke with an additional 49 g per 10 mm stroke, and a maximum force Fy and Fz of 100 N. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 571436
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 571436.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 50 mm...1000 mm
- Size
- 45
- Mounting position
- Any
- Guide
- Plain-bearing guide | Recirculating ball bearing
- Structural design
- Guide axis without drive
- Max. acceleration
- 50 m/s²
- Max. speed
- 1 m/s...3 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP20
- Ambient temperature
- -10 °C...50 °C
- 2nd moment of area Iy
- 15710 mm⁴
- 2nd moment of area Iz
- 17940 mm⁴
- Max. force Fy
- 100 N
- Max. force Fz
- 100 N
- Max. no-load resistance to shifting
- 6 N
- Reference service life
- 5000 km
- Additional moving mass per 10 mm stroke
- 0 g
- Basic weight with 0 mm stroke
- 2670 g
- Additional weight per 10 mm stroke
- 49 g
- Prole material
- Wrought aluminum alloy | Anodized
- Note on materials
- RoHS compliant
- Drive cover material
- Wrought aluminum alloy | Anodized
- Guide rail material
- Steel
- Slide material
- Wrought aluminum alloy | Anodized
