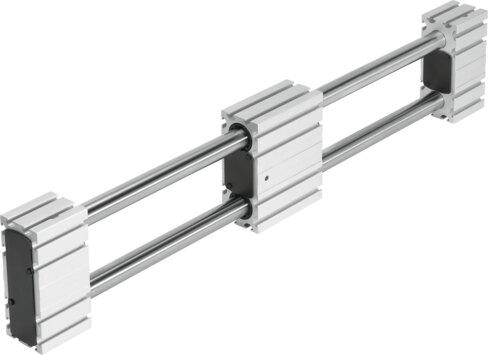

Reference imageConfirm configuration by manufacturer part number.
Festo
571437
Guide axis ELFR-...-55- -
The Festo 571437 is an industrial guide axis without a drive featuring a size 55 designation, a working stroke ranging from 50 mm to 1500 mm, and a plain-bearing or recirculating ball bearing guide. This component supports any mounting position, accommodates a maximum acceleration of 50 m/s², and achieves a maximum speed between 1 m/s and 3 m/s while providing maximum Fy and Fz forces of 300 N. Built with a basic weight of 4550 g at 0 mm stroke and an additional weight of 77 g per 10 mm stroke, the unit operates within an ambient temperature range of -10 °C to 50 °C and maintains a reference service life of 5000 km. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 571437
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 571437.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 50 mm...1500 mm
- Size
- 55
- Mounting position
- Any
- Guide
- Plain-bearing guide | Recirculating ball bearing
- Structural design
- Guide axis without drive
- Max. acceleration
- 50 m/s²
- Max. speed
- 1 m/s...3 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP20
- Ambient temperature
- -10 °C...50 °C
- 2nd moment of area Iy
- 38300 mm⁴
- 2nd moment of area Iz
- 41180 mm⁴
- Max. force Fy
- 300 N
- Max. force Fz
- 300 N
- Max. no-load resistance to shifting
- 10 N
- Reference service life
- 5000 km
- Additional moving mass per 10 mm stroke
- 0 g
- Basic weight with 0 mm stroke
- 4550 g
- Additional weight per 10 mm stroke
- 77 g
- Prole material
- Wrought aluminum alloy | Anodized
- Note on materials
- RoHS compliant
- Drive cover material
- Wrought aluminum alloy | Anodized
- Guide rail material
- Steel
- Slide material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 571437. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
