Festo
571686

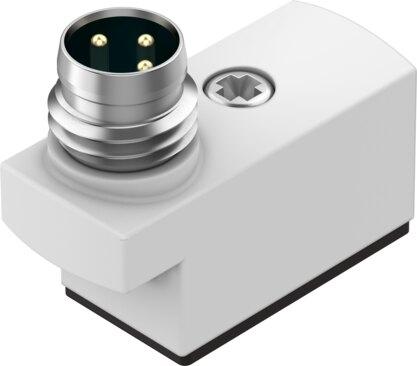

Adapter VAVE-C8-1R8
Festo Adapter VAVE-C8-1R8, part number 571686, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 571686
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 571686.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Signal status display
- LED
- Nominal operating voltage DC
- 24 V
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | As per IEC 60529
- Ambient temperature
- -5 °C...60 °C
- Mounting position
- Any
- Tightening torque
- 0.25 Nm
- Product weight
- 3.5 g
- Electrical connection
- 3-pin / 2-pin | M8 / - | Plug / socket
- Protective earth connection
- Not available
- Type of mounting
- On air solenoid valve with M2 central screw
- Note on materials
- RoHS compliant
- Housing material
- PA
- Material of pin contacts
- Bronze
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 571686. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
