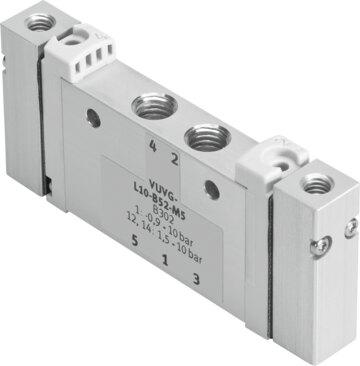

Reference imageConfirm configuration by manufacturer part number.
Festo
571755
Pneumatic valve VUWG
The Festo part number 571755 is an industrially configured pneumatic industrial component featuring a piston gate valve structural design with a soft sealing principle and positive overlap lap. It accommodates multiple valve functions including 2x3/2 closed monostable, 2x3/2 open monostable, 2x3/2 open/closed monostable, 5/2-way bistable, 5/2-way monostable, 5/3-way pressurized, 5/3 exhausted, and 5/3-way closed configurations, operating within a pressure range of -0.9 bar to 10 bar and providing a normal nominal flow rate from 90 l/min to 1380 l/min. This directly controlled unit supports 10 mm, 14 mm, and 18 mm valve sizes, features M3 through G1/4 and QS-3 through QS-3/8 pneumatic working ports, utilizes a mechanical or pneumatic spring reset method with adjustable exhaust air function, and mounts in any position without a manual override. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 571755
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 571755.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable | 2x3/2 open monostable | 2x3/2, open/closed, monostable | 5/2-way, bistable | 5/2-way, monostable | 5/3-way, pressurized | 5/3 exhausted | 5/3-way, closed
- Actuation type
- Pneumatic
- Valve size
- 10 mm | 14 mm | 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 90 l/min...1380 l/min
- Pneumatic working port
- M3 | M5 | M7 | G1/8 | G1/4 | QS-3 | QS-4 | QS-6 | QS-8 | QS-10 | QS-5/32 | QS-1/8 | QS-3/16 | QS-1/4 | QS-5/16 | QS-3/8
- Operating pressure
- -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring | Pneumatic spring
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- directly
- Lap
- Positive overlap
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 571755. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
