Festo
571900

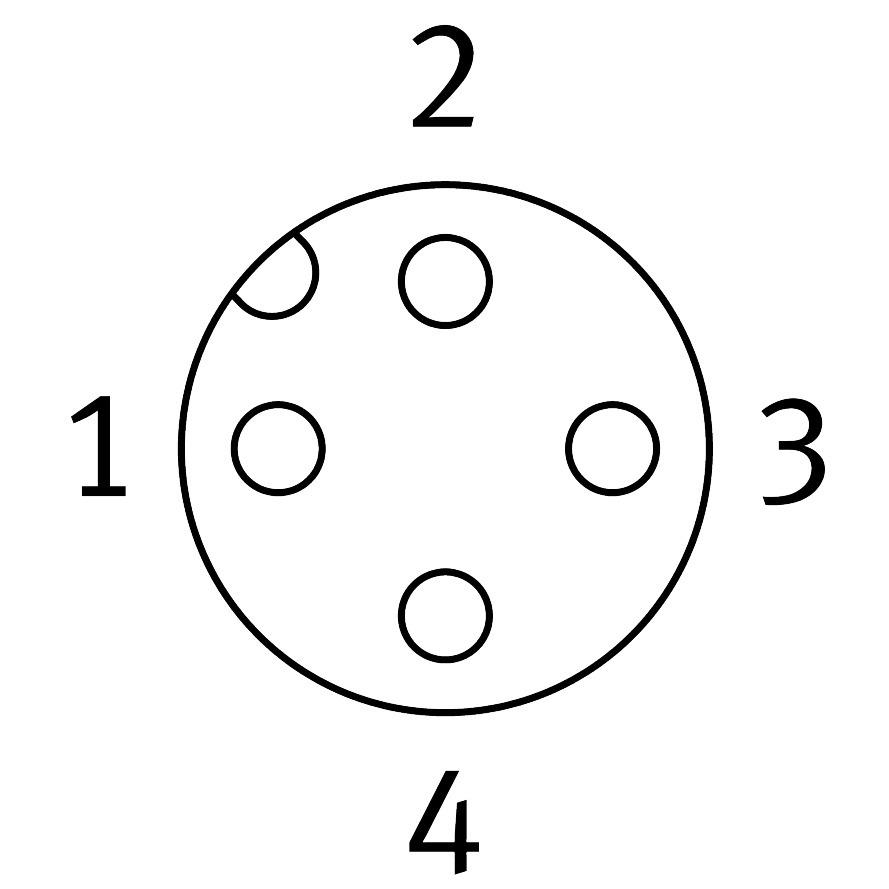

Motor cable NEBM-M12G4-RS-2.23-N-M12G4H
This Festo industrial component, part number 571900, conforms to DIN 47100 and EN 61984 standards and operates within a DC and AC voltage range of 0 V to 250 V. It features a field device side with a straight, 4-pin, 4-occupied-wire M12x1 A-coded socket using a screw-type lock with AF 14, alongside a control side with a straight, 4-pin, 4-occupied-wire M12x1 A-coded plug using a screw-type lock with hexagon AF 18. Both round connections operate without a label holder. Submit part number 571900, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 571900
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 571900.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- DIN 47100 | EN 61984
- Cable designation
- Without label holder
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock with AF 14
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Screw-type lock with hexagon, AF 18
- DC operating voltage range
- 0 V...250 V
- Operating voltage range AC
- 0 V...250 V
- Current rating at 40° C
- 4 A
- Shield
- Yes
- Cable length
- 2.23 m
- Cable characteristic
- Suitable for robot applications
- Bending radius, exible cable installation
- 60 mm
- Cable diameter
- 5.9 mm
- Cable design
- 4 x 0.34 mm²
- Nominal conductor cross section
- 0.34 mm²
- Degree of protection
- IP67
