Festo
571902
Encoder cable NEBM-M12G12-RS-2.23-N-M12G12H
Festo Encoder cable NEBM-M12G12-RS-2.23-N-M12G12H, part number 571902, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 571902
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 571902.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Conforms to standard
- DIN 47100 | EN 61984
- Cable designation
- Without label holder
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101

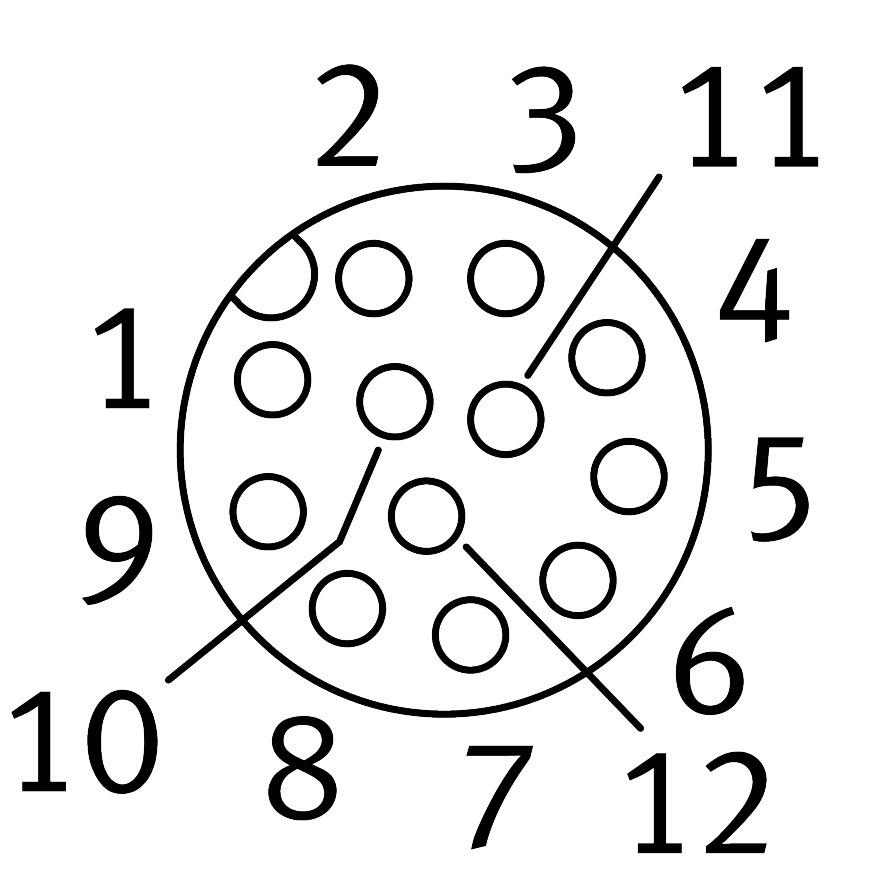

- Electrical connection 1, number of pins/wires
- 12
- Electrical connection 1, occupied pins/wires
- 11
- Electrical connection 1, type of mounting
- Screw-type lock with AF 14
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, number of pins/wires
- 12
- Electrical connection 2, occupied pins/wires
- 11
- Electrical connection 2, type of mounting
- Screw-type lock with hexagon, AF 18
- DC operating voltage range
- 0 V...30 V
- Nominal operating voltage DC
- 24 V
- Operating voltage range AC
- 0 V...30 V
- Nominal operating voltage AC
- 24 V
- Current rating at 40° C
- 1 A
- Shield
- Yes
- Cable length
- 2.23 m
- Cable characteristic
- Suitable for robot applications
- Bending radius, exible cable installation
- 70 mm
- Cable diameter
- 7 mm
- Cable design
- 12 x 0.14 mm²
