Festo
571915
Encoder cable NEBM-M12G12-RS-15-N-S1G15
This Festo industrial component, part number 571915, conforms to DIN 47100 and EN 61984 standards and operates within a DC voltage range of 0 V to 30 V with a nominal operating voltage of 24 V DC. Connection 1 features a straight, round socket for the field device side utilizing M12x1 A-coded connection technology per EN 61076-2-101 with 12 pins, 11 occupied pins, a screw-type lock with AF 14, and no label holder. Connection 2 provides a straight, square Sub-D plug for the control side featuring 15 pins, 11 occupied pins, and a screw-type lock with an AF 18 hexagon. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 571915
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 571915.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- DIN 47100 | EN 61984
- Cable designation
- Without label holder
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight

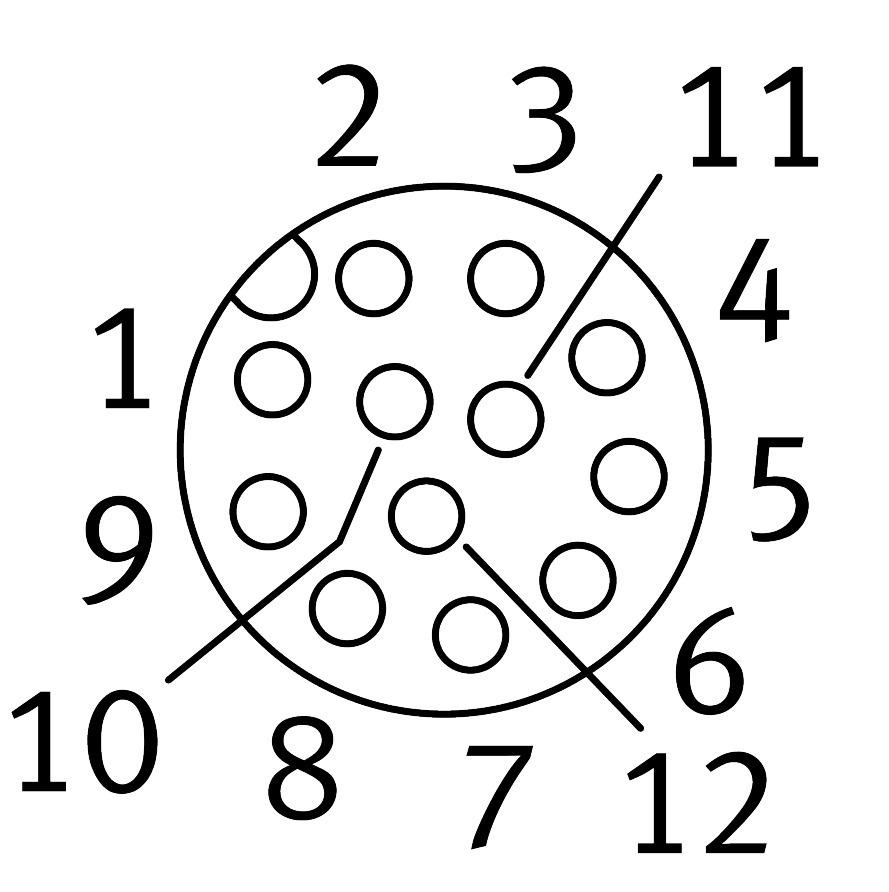

- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 12
- Electrical connection 1, occupied pins/wires
- 11
- Electrical connection 1, type of mounting
- Screw-type lock with AF 14
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Sub-D
- Electrical connection 2, number of pins/wires
- 15
- Electrical connection 2, occupied pins/wires
- 11
- Electrical connection 2, type of mounting
- Screw-type lock with hexagon, AF 18
- DC operating voltage range
- 0 V...30 V
- Nominal operating voltage DC
- 24 V
- Operating voltage range AC
- 0 V...30 V
- Nominal operating voltage AC
- 24 V
- Current rating at 40° C
- 1 A
- Shield
- Yes
- Cable length
- 15 m
- Cable characteristic
- Suitable for robot applications
- Bending radius, exible cable installation
- 70 mm
- Cable diameter
- 7 mm
- Cable design
- 12 x 0.14 mm²
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 571915. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
