Festo
572079

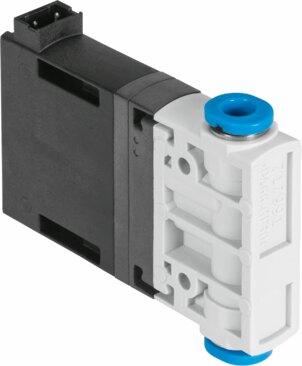

Air solenoid valve MHJ9-QS-4-LF
The Festo 572079 is a directly controlled 2/2-way closed monostable industrial component featuring a 9 mm width dimension, a hard sealing principle, and a nominal flow rate of 50 l/min normalized to DIN 1343. Operating on 24V DC within a pressure range of 0.05 MPa to 0.8 MPa (0.5 bar to 8 bar, 7.25 psi to 116 psi), this electrical poppet valve without a return spring utilizes a pneumatic spring reset method and includes a QS-4 pneumatic working port. Designed with an IP40 degree of protection, non-reversible flow direction, and a maximum switching frequency of 500 Hz, it supports any mounting position but must not be operated without flow. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 572079
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 572079.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 9 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 50 l/min
- Pneumatic working port
- QS-4
- Operating voltage
- 24V DC
- Operating pressure
- 0.05 MPa...0.8 MPa | 0.5 bar...8 bar | 7.25 psi...116 psi
- Structural design
- Poppet valve without return spring
- Reset method
- Pneumatic spring
- Degree of protection
- IP40
- Width dimension
- 9.5 mm
- Information on operation
- Do not operate without ow. | For block assembly with ow rate at max. ambient temperature 45 °C.
- Sealing principle
- Hard
- Mounting position
- Any
- Manual override
- None
- Type of control
- directly
- Flow direction
- Non-reversible
- b-value
- 0.5
- C value
- 0.2 l/sbar
- Max. switching frequency
- 500 Hz
- Switching time on at 4 bar and 24 V in new condition
- 0.7 ms
- Switching time off at 4 bar and 24 V in new condition
- 0.9 ms
- Switching time on at 4 bar and 48 V in new condition
- 0.6 ms
- Switching time off at 4 bar and 48 V in new condition
- 0.8 ms
- Switching time on at 4 bar and 12 V in new condition
- 1 ms
- Switching time off at 4 bar and 12 V in new condition
- 0.9 ms
- Switching time on at 0.5 bar and 24 V in new condition
- 0.7 ms
- Switching time off at 0.5 bar and 24 V in new condition
- 0.9 ms
- Switching time on at 6 bar and 24 V in new condition
- 0.75 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 572079. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
