572081

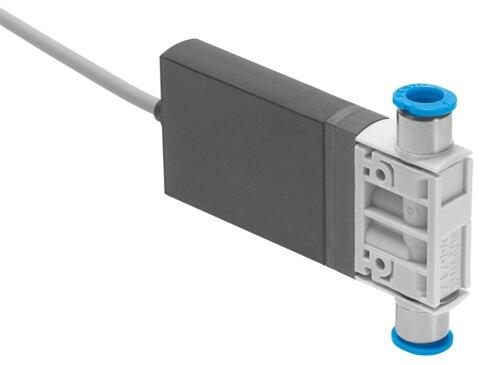

Name: Festo 572081 Air solenoid valve MHJ10-S-2,5-QS-4-LF
Brand: Festo

Air solenoid valve MHJ10-S-2,5-QS-4-LF

The Festo 572081 is a 2/2-way closed monostable industrial component featuring a direct-controlled poppet valve design with a pneumatic spring reset method and no manual override. Measuring 10 mm in width with QS-4 pneumatic working ports, this hard-sealed device delivers a normal nominal flow rate of 50 l/min across an operating pressure range of 0.05 MPa to 0.8 MPa. It operates on 24V DC, achieves an IP55 degree of protection, and carries RCM, CE, and UKCA compliance marks. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 572081
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 572081.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2/2-way, closed, monostable
Actuation type: Electrical
Width: 10 mm
Normal nominal ow rate (normalized to DIN 1343): 50 l/min
Pneumatic working port: QS-4
Operating voltage: 24V DC
Operating pressure: 0.05 MPa...0.8 MPa | 0.5 bar...8 bar | 7.25 psi...116 psi
Structural design: Poppet valve without return spring
Reset method: Pneumatic spring
Degree of protection: IP55
Certication: RCM compliance mark
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Width dimension: 10.5 mm
Information on operation: Power supply unit must be able to supply at least 1.7 A without voltage | drop. | Do not operate without ow. | For block assembly with ow rate at max. ambient temperature 45 °C.
Sealing principle: Hard
Mounting position: Any
Manual override: None
Type of control: directly
Flow direction: Non-reversible
Reverse polarity protection: For operating voltage
Additional functions: Spark arresting | Holding current reduction with energy recovery | Safety shut-oﬀ
b-value: 0.5
C value: 0.2 l/sbar
Max. switching frequency: 500 Hz

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 572081. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
