Festo
572230

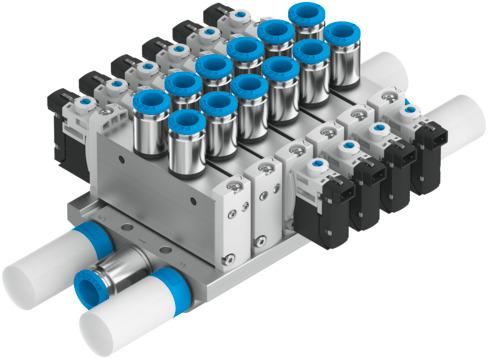

Valve manifold assembly VTUG-S
The Festo 572230 industrial component is a type 26 valve terminal featuring an individual electrical connection without an integrated electrical I/O system. It operates within a temperature range of -5 °C to 60 °C, utilizing compressed air conforming to ISO 8573-1:2010 [7:4:4] for both operating and pilot media, where oil lubrication is possible and required for continued use. The unit provides IP40 and IP65 protection classes, moderate corrosion resistance (CRC 2), an operating pressure range of -0.9 bar to 10 bar, and a pilot pressure of 1.5 bar to 8 bar, while complying with EU EMC and UKCA directives, VDMA24364-B2-L LABS conformity, RoHS material standards, RCM, and c UL us certifications. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 572230
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 572230.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Electrical actuation
- Individual connection
- Electrical I/O system
- No
- Valve terminal type
- 26
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -5 °C...60 °C
- Ambient temperature
- -5 °C...60 °C
- Restricted ambient and media temperature
- -5 - 50 °C | Without holding current reduction
- Degree of protection
- IP40 | IP65
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Operating pressure
- -0.09 MPa...0.1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.15 MPa...0.8 MPa
- Pilot pressure
- 1.5 bar...8 bar
- Operating pressure for valve manifold with internal pilot air supply
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- LABS (PWIS) conformity
- VDMA24364-B2-L
- CE marking (see declaration of conformity)
- As per EU EMC directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Note on materials
- RoHS compliant
- Seals material
- HNBR | NBR
- Valve manifold design
- Fixed grid
- Max. no. of valve positions
- 16
- Max. no. of pressure zones
- 9
- Actuation type
- Electrical
- Valve function
- 2x3/2 closed, monostable | 2x3/2 open monostable | 2x3/2, open/closed, monostable
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 572230. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
