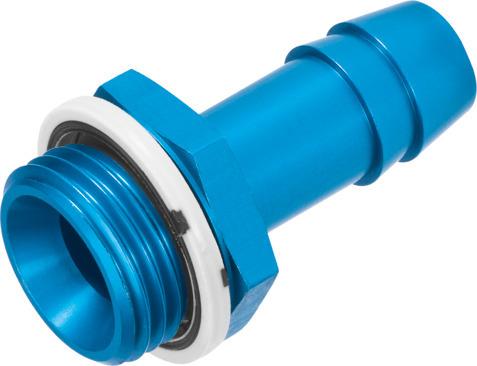

Name: Festo 572243 Barb tubing fitting N-1-P-19-NPT
Brand: Festo

Barb tubing fitting N-1-P-19-NPT

The Festo part number 572243 is an anodized aluminum industrial component featuring a straight design with a 16.5 mm nominal width and a product weight of 80.72 g. This assembly utilizes an external thread 1 NPT pneumatic connection 1 and a pneumatic connection 2 for tubing I.D. 19 mm, operating within a pressure range of -0.95 bar to 16 bar for compressed air as per ISO 8573-1:2010 [7:-:-]. It offers a corrosion resistance class of 2 for moderate corrosion stress, operates at ambient temperatures between -10 °C and 60 °C, and requires oil lubrication for further use with its coated screwed plug. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 572243
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 572243.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 16.5 mm
Type of seal on screwed plug: Coating
Mounting position: Any
Design: Straight design
Pack size: 1
Operating pressure for entire temperature range: -0.95 bar...16 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Product weight: 80.72 g
Pneumatic connection 1: External thread 1 NPT
Pneumatic connection 2: For tubing I.D. 19 mm
Note on materials: RoHS compliant
Housing material: Anodized aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 572243. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
