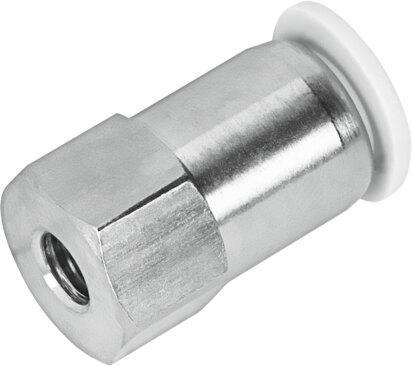

Name: Festo 572282 Push-in fitting QBMF-10-32-UNF-1/8-U
Brand: Festo

Push-in fitting QBMF-10-32-UNF-1/8-U

This Festo industrial component, part number 572282, features a mini straight design utilizing a push-pull structural design with a 0.098 in nominal width and a gray releasing ring. It includes an internal thread 10-32 UNF-2B pneumatic connection 1 and a connection 2 for 1/8" outside diameter pneumatic tubing, sealed on the screwed plug with a sealing ring and mounted via an external hexagon 5/16. The unit operates within a temperature range of 0 °C to 60 °C (32 °F to 140 °F), supports an operating pressure of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar | -13.775 psi to 145 psi) for compressed air per ISO 8573-1:2010 [7:-:-], and allows lubricated operation with a maximum tightening torque of 1.11 ft-lbf. Supplied in a pack size of 10 with a product weight of 0.071 oz each, it meets CRC 1 low corrosion stress and VDMA24364 Zone III LABS conformity for installation in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 572282
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 572282.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Mini
Nominal width: 0.098 in
Type of seal on screwed plug: Sealing ring
Mounting position: Any
Design: Straight design
Pack size: 10
Structural design: Push-pull principle
Operating pressure for entire temperature range: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Ambient temperature: 0 °C...60 °C
Max. tightening torque: 1.11 ft-lbf
Product weight: 0.071 oz
Type of mounting: External hexagon 5/16
Pneumatic connection 1: Internal thread 10-32 UNF-2B
Pneumatic connection 2: for pneumatic tubing outside diameter 1/8"
Ambient temperature Fahrenheit: 32 °F...140 °F
Releasing ring color: Gray
Note on materials: RoHS compliant
Housing material: Brass, nickel-plated | PBT
Releasing ring material: POM
Material of tubing seal: NBR
Material of tube retaining claw: high-alloy stainless steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 572282. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
