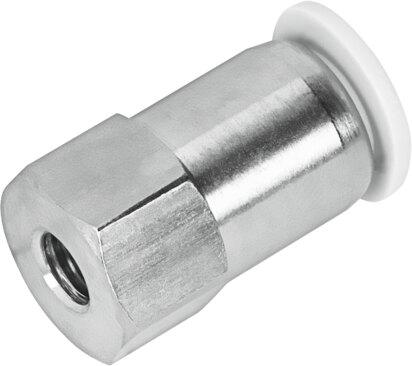

Reference imageConfirm configuration by manufacturer part number.
Festo
572283
Push-in fitting QBMF-10-32-UNF-5/32-U
The Festo part number 572283 is a mini straight industrial component featuring an internal thread 10-32 UNF-2B pneumatic connection 1 and a connection 2 for 5/32-inch outside diameter pneumatic tubing utilizing a push-pull structural design. This component operates within a pressure range of -0.95 bar to 10 bar using compressed air as per ISO 8573-1:2010 [7:-:-], with lubricated operation possible across an ambient temperature range of 0 °C to 60 °C. Supplied in a pack size of 10, the unit incorporates an external hexagon 5/16 mounting type with a maximum tightening torque of 1.11 ft-lbf, a sealing ring on the screwed plug, and a gray releasing ring. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 572283
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 572283.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 0.118 in
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Max. tightening torque
- 1.11 ft-lbf
- Product weight
- 0.176 oz
- Type of mounting
- External hexagon 5/16
- Pneumatic connection 1
- Internal thread 10-32 UNF-2B
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/32"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
