Festo
572299

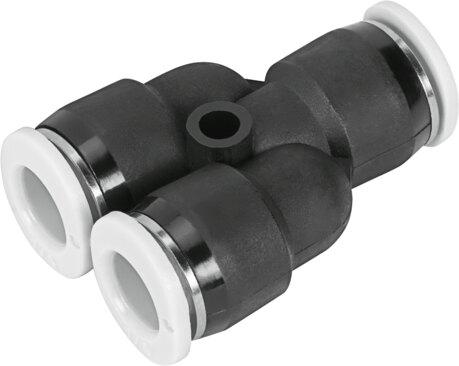

Push-in Y-connector QBMY-1/8T-U
The Festo 572299 is a mini Y-shape industrial component featuring a push-pull structural design with a nominal width of 0.094 inches and connections for 1/8-inch outside diameter pneumatic tubing on both ports. Constructed with a PBT housing, POM gray releasing ring, and class 1 low corrosion resistance, this component operates within a temperature range of 0 °C to 60 °C (32 °F to 140 °F) and pressures from -0.095 MPa to 1 MPa (-13.775 psi to 145 psi) using compressed air according to ISO 8573-1:2010 [7:-:-]. Each pack size contains 10 RoHS compliant units weighing 0.141 ounces each, supporting lubricated operation and VDMA24364 Zone III LABS conformity in any mounting position. Submit part number 572299, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 572299
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 572299.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 0.094 in
- Mounting position
- Any
- Design
- Y-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 0.141 oz
- Pneumatic connection 1
- For pneumatic tubing outside diameter 1/8"
- Pneumatic connection 2
- for pneumatic tubing outside diameter 1/8"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 572299. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
