Festo
572312

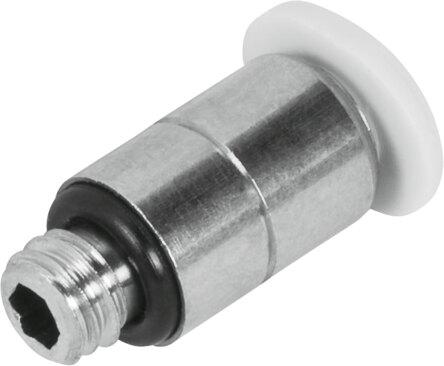

Push-in fitting QBM-10-32-UNF-5/32-I-U
The Festo part number 572312 is a mini straight industrial component featuring a 0.094 in nominal width and a push-pull structural design with a gray releasing ring. This component utilizes a 10-32 UNF-2A external thread pneumatic connection 1 with a sealing ring on the screwed plug and a pneumatic connection 2 for 5/32" outside diameter pneumatic tubing, mounted via a 3/32 hex socket requiring a maximum tightening torque of 1.11 ft-lbf. Operating across a pressure range of -13.775 psi to 145 psi and an ambient temperature range of 32 °F to 140 °F, it functions with compressed air conforming to ISO 8573-1:2010 [7:-:-] and allows lubricated operation within a CRC 1 low corrosion stress classification and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote for this pack size of 10 weighing 0.106 oz each.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 572312
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 572312.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 0.094 in
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Max. tightening torque
- 1.11 ft-lbf
- Product weight
- 0.106 oz
- Type of mounting
- Hex socket 3/32
- Pneumatic connection 1
- External thread 10-32 UNF-2A
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/32"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 572312. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
