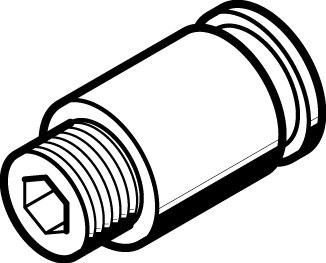

Reference imageConfirm configuration by manufacturer part number.
Festo
572316
Push-in fitting QB-10-32-UNF-1/4-I-U
The Festo 572316 is a straight industrial component featuring a 0.094 in nominal width and a push-pull structural design for 1/4" outer diameter pneumatic tubing connected via an external thread 10-32 UNF-2A with a sealing ring. This standard-sized unit operates across a pressure range of 0.095 MPa to 1 MPa (0.95 bar to 10 bar / 13.775 psi to 145 psi) and a temperature range of 0 °C to 60 °C (32 °F to 140 °F) using compressed air conforming to ISO 8573-1:2010 [7:-:-]. Delivered in a pack size of 10 with a product weight of 0.31 oz each, it offers any mounting position, a 3/32 hex socket type of mounting, a max tightening torque of 1.11 ft-lbf, a gray releasing ring, VDMA24364 Zone III LABS conformity, CRC 1 low corrosion stress, and compatibility with lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 572316
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 572316.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.094 in
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- 0.095 MPa...1 MPa | 0.95 bar...10 bar | 13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Max. tightening torque
- 1.11 ft-lbf
- Product weight
- 0.31 oz
- Type of mounting
- Hex socket 3/32
- Pneumatic connection 1
- External thread 10-32 UNF-2A
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 572316. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
