Festo
572324

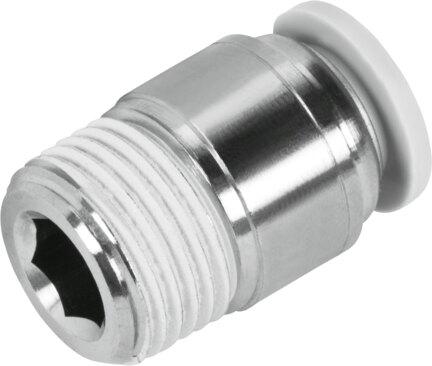

Push-in fitting QB-3/8-3/8-I-U
The Festo part number 572324 is a straight industrial component featuring a 3/8 NPT external thread on pneumatic connection 1 and a push-pull structural design for 3/8-inch outside diameter pneumatic tubing on connection 2. This standard-sized unit operates across a pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar or -13.775 psi to 145 psi) using compressed air as per ISO 8573-1:2010 [7:-:-], with lubricated operation possible. Equipped with a coating seal on the screwed plug, a 5/16 hex socket mounting type, and a gray releasing ring, the component weighs 1.21 oz and functions in ambient temperatures from 0 °C to 60 °C (32 °F to 140 °F). Each pack size contains 10 RoHS-compliant units with a corrosion resistance class of 1 and VDMA24364 Zone III LABS conformity, designed for any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 572324
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 572324.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.315 in
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 1.21 oz
- Type of mounting
- Hex socket 5/16
- Pneumatic connection 1
- external thread 3/8 NPT
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3/8"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Material of threaded seal
- PTFE
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 572324. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
