Festo
572381

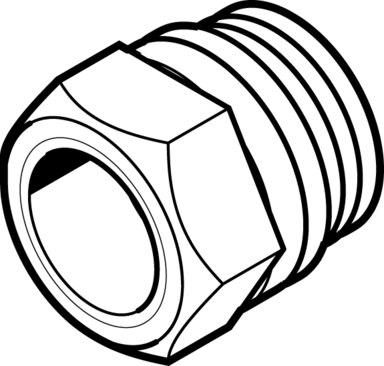

Adapter VMPAL-FSP-G1/4
The Festo 572381 is an industrial component featuring a wrought aluminum alloy housing and a pack size of 10 units, with each unit weighing 63 g. It accommodates an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar, -13.05 psi to 145 psi) and an ambient temperature range of -5 °C to 50 °C, utilizing a Cartridge 20 mm pneumatic connection 1 and a G1/4 pneumatic connection 2. This RoHS-compliant part adheres to VDMA24364-B1/B2-L LABS conformity and offers a corrosion resistance class (CRC) of 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 572381
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 572381.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Pack size
- 10
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar | -13.05 psi...145 psi
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 63 g
- Pneumatic connection 1
- Cartridge 20 mm
- Pneumatic connection 2
- G1/4
- Note on materials
- RoHS compliant
- Housing material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 572381. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
