572542

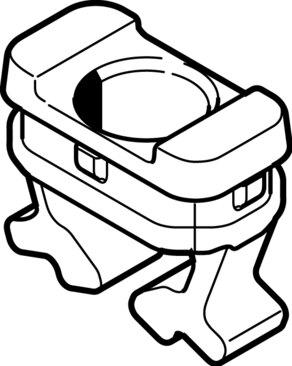

Name: Festo 572542 Retainer VMPA1-FTI-10
Brand: Festo

Retainer VMPA1-FTI-10

The Festo part number 572542 is an industrial component featuring a size 10 designation and a product weight of 0.07 g with a clamped mounting type and a POM retainer bracket material. Designed with any mounting position, this unit operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar, -13.05 psi to 145 psi) using compressed air as per ISO 8573-1:2010 [7:4:4], supporting oil lubrication operation and complying with VDMA24364-B1/B2-L LABS conformity and RoHS material directives. It functions across an ambient and medium temperature range of -5 °C to 60 °C and a storage temperature range of -20 °C to 40 °C, supplied in a pack size of 10. Request a quote for Festo part number 572542 by submitting your exact quantity and application requirements.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 572542
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 572542.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 10
Mounting position: Any
Pack size: 10
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar | -13.05 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...40 °C
Temperature of medium: -5 °C...60 °C
Ambient temperature: -5 °C...60 °C
Product weight: 0.07 g
Type of mounting: Clamped
Note on materials: RoHS compliant
Retainer bracket material: POM

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 572542. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
