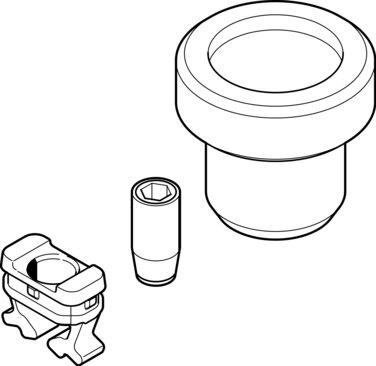

Reference imageConfirm configuration by manufacturer part number.
Festo
572543
Fixed flow restrictor-SET VMPA1-FT-NW0.3-1.7
Engineered by Festo, the part number 572543 is a Size 10 industrial component providing a flow control function with a standard nominal flow rate ranging from 3.5 l/min to 115 l/min and a nominal width of 0.3 mm to 1.7 mm. This unit features clamped sub-base pneumatic connection 1, a wrought aluminum alloy hollow bolt, a POM retainer bracket, and an exceptionally lightweight construction of 0.6 g with RoHS compliant materials. It operates within a pressure range of -0.09 bar to 1 bar and ambient temperatures from -5 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4], supporting optional oil lubrication. Please submit the exact part number, quantity, and application requirements to request a quote for this pack size of 2.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 572543
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 572543.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Flow control function
- Pneumatic connection 1
- Sub-base
- Type of mounting
- Clamped
- Standard nominal ow rate in ow control direction
- 3.5 l/min...115 l/min
- Operating pressure
- -0.09 bar...1 bar | -0.09 bar...1 bar
- Ambient temperature
- -5 °C...60 °C
- Size
- 10
- Nominal width
- 0.3 mm...1.7 mm
- Mounting position
- Any
- Pack size
- 2
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...40 °C
- Temperature of medium
- -5 °C...60 °C
- Product weight
- 0.6 g
- Note on materials
- RoHS compliant
- Retainer bracket material
- POM
- Hollow bolt material
- Wrought aluminum alloy
