Festo
572555
Bus node CTEU-AS
The Festo part number 572555 is an industrial component utilizing the AS-Interface protocol, measuring 40 mm in width with overall dimensions of 40 mm x 91 mm x 50 mm and a product weight of 90 g. Featuring a PA housing rated to IP65 and IP67 when mounted with unused connections sealed, it operates within an ambient temperature range of 0 °C to 50 °C and includes DIL switch control elements alongside LED displays for operating voltage, module system status, and bus operation. This RoHS-compliant unit holds c UL us listing, CE and UKCA markings per EMC and RoHS directives, and features VDMA24364 Zone III LABS conformity with a CRC 2 moderate corrosion resistance class. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 572555
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 572555.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protocol
- AS-Interface
- Dimensions W x L x H
- 40 mm x 91 mm x 50 mm
- Width dimension
- 40 mm
- Type of mounting
- On electrical interface | on the electrical sub-base
- Product weight
- 90 g
- Ambient temperature
- 0 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- IP65 | IP67
- Note on degree of protection
- In mounted state | Unused connections sealed
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Certication
- c UL us - Listed (OL)
- Note on materials
- RoHS compliant
- Housing material
- PA
- LED display (product-specic)
- PS: operating voltage for electronics and load supply | X1: module system status at I-Port 1
- LED display (bus-specic)
- AS-i: AS-Interface operation
- Diagnostics
- Communication error | System diagnostics | Undervoltage
- Control elements
- DIL switch
- Fieldbus interface, type
- AS-Interface
- Fieldbus interface, protocol
- AS-Interface
- Fieldbus interface, connection type
- Plug
- Fieldbus interface, connection technology

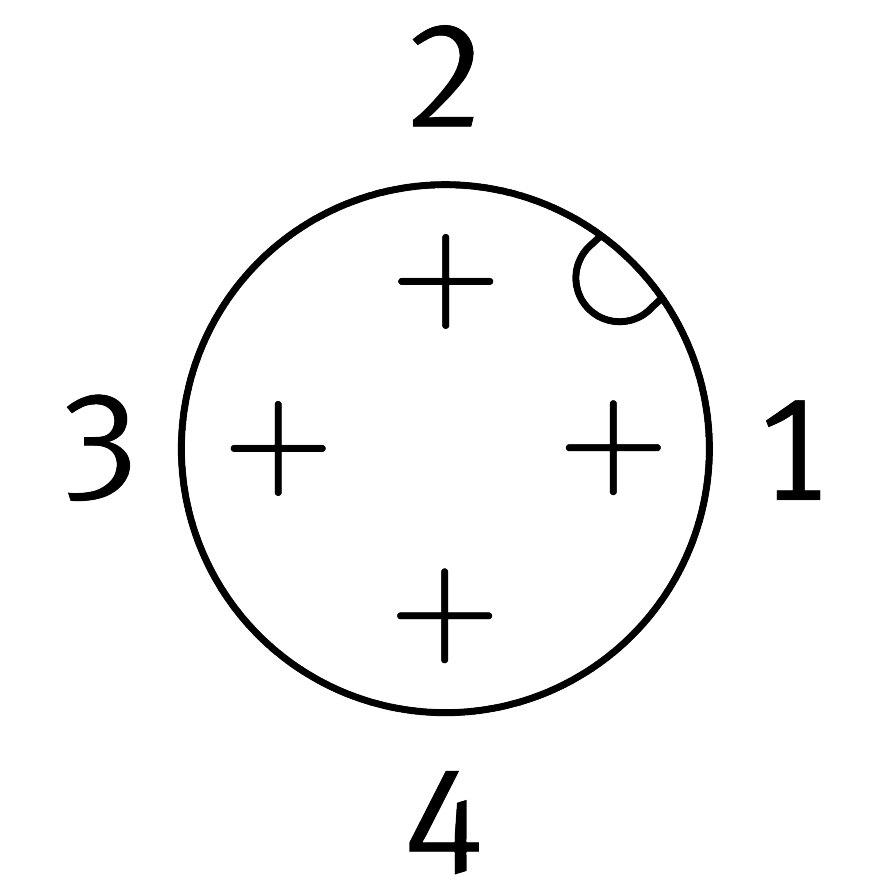

- M12x1, A-coded as per EN 61076-2-101
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 572555. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
