Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

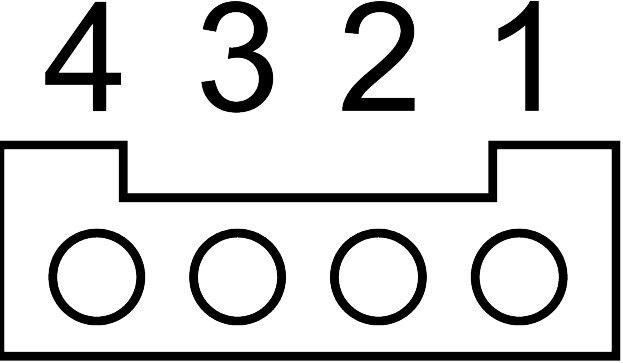

Reference imageConfirm configuration by manufacturer part number.
Festo
572576
Connecting cable NEBS-L1G4-K-2.5-LE4
The Festo 572576 is an industrial component featuring a square socket on the field device side with a straight cable outlet, connection pattern L1J, 4 pins, and snap-locking mounting, paired with a 4-wire open-end cable on the control side. This 53 g assembly includes a label holder, supports a DC operating voltage range of 0 V to 30 V, a current rating of 1 A at 40° C, a surge resistance of 0.8 kV, a contact durability of 100 mating cycles, and a 2.5 m cable length. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 572576
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 572576.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- With label holder
- Contact durability
- 100
- Product weight
- 53 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Connection pattern L1J
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- DC operating voltage range
- 0 V...30 V
- Current rating at 40° C
- 1 A
- Surge resistance
- 0.8 kV
- Cable length
- 2.5 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 13 mm
- Bending radius, exible cable installation
- 42 mm
- Cable diameter
- 4.1 mm
- Cable diameter tolerance
- ± 0.15 mm
- Cable design
- 4 x 0.17 mm²
- Nominal conductor cross section
- 0.17 mm²
- Wire ends
- Cut off bluntly
- Degree of protection
- IP40
- Note on degree of protection
- In mounted state
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 572576. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
