Festo
572577

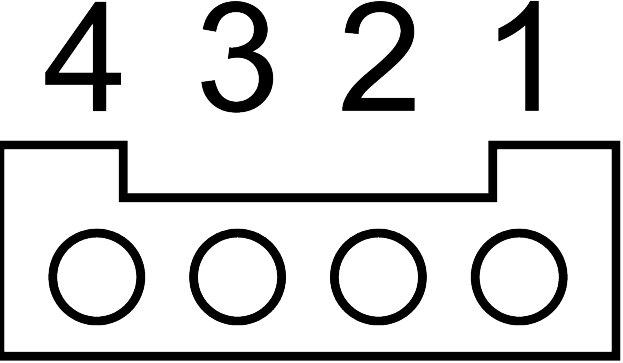

Connecting cable NEBS-L1G4-K-5-LE4
The Festo part number 572577 is an industrial component featuring a square socket on the field device side with a straight cable outlet, L1J connection pattern, 4 pins, snap-locking mounting, and an integrated label holder. The control side consists of a 5 m cable with 4 open-end wires, supporting a DC operating voltage range of 0 V to 30 V, a current rating of 1 A at 40° C, and a surge resistance of 0.8 kV. Weighing 106 g with a contact durability of 100, this unit integrates specific connection architecture for targeted automation setups. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 572577
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 572577.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- With label holder
- Contact durability
- 100
- Product weight
- 106 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Connection pattern L1J
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- DC operating voltage range
- 0 V...30 V
- Current rating at 40° C
- 1 A
- Surge resistance
- 0.8 kV
- Cable length
- 5 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 13 mm
- Bending radius, exible cable installation
- 42 mm
- Cable diameter
- 4.1 mm
- Cable diameter tolerance
- ± 0.15 mm
- Cable design
- 4 x 0.17 mm²
- Nominal conductor cross section
- 0.17 mm²
- Wire ends
- Cut off bluntly
- Degree of protection
- IP40
- Note on degree of protection
- In mounted state
