Name: Festo 572606 Input module CPX-L-16DE-16-KL-3POL
Brand: Festo

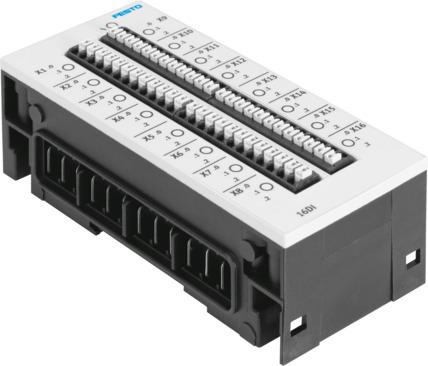

Input module CPX-L-16DE-16-KL-3POL

The Festo 572606 industrial component is a 16-input module measuring 50 mm x 107 mm x 41 mm with the interlinking block and weighing 167 g. Operating on a nominal 24 V DC within an 18 V to 30 V range, it features PNP input switching logic, integrated LED indicators for channel status and group diagnostics, and parameterizable functions including input debounce time and short-circuit response. Constructed with a reinforced PA housing providing IP20 protection, this RoHS-compliant unit operates in ambient temperatures from -5 °C to 50 °C and holds c UL us-Listed (OL) certification. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 572606
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 572606.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: (incl. interlinking block) | 50 mm x 107 mm x 41 mm
Product weight: 167 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: IP20
Corrosion resistance class (CRC): 1 - Low corrosion stress | (installed)
LABS (PWIS) conformity: VDMA24364-B2-L
Certication: c UL us - Listed (OL)
Note on materials: RoHS compliant
Housing material: PA-reinforced
LED indicators: 1 group diagnostics | 16 channel status
Diagnostics: Short circuit/overload per channel
Parameterization: Input debounce time | Signal extension time | Response to short circuit | Module monitoring
DC operating voltage range: 18 V...30 V
Nominal operating voltage DC: 24 V
Intrinsic current consumption at nominal operating voltage: Type. 15 mA
No. of inputs: 16
Input characteristics: IEC1131-T2, type 01
Switching level: Signal 0: <= 5 V | Signal 1: >= 15 V
Input switching logic: PNP (positive switching)
Input debounce time: 3 ms (0.1 ms, 10 ms, 20 ms parameterizable)
Max. residual current of inputs per module: 1.8 A
Electrical isolation between channels: No
Electrical isolation between channel and internal bus: No
Fuse protection (short circuit): Internal electronic fuse per module
