572607

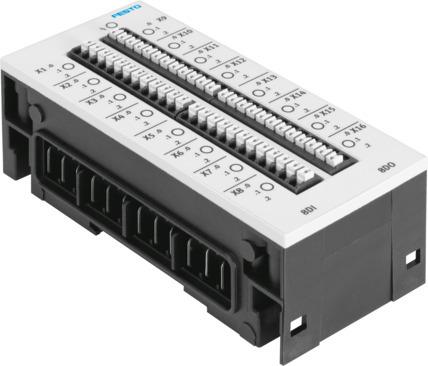

Name: Festo 572607 Input/output module CPX-L-8DE-8DA-16-KL-3POL
Brand: Festo

Input/output module CPX-L-8DE-8DA-16-KL-3POL

The Festo part number 572607 is an industrial component featuring 8 inputs and 8 outputs with an IP20 degree of protection and a reinforced PA housing. Operating at a nominal 24 V DC within a voltage range of 18 V to 30 V, it includes 1 group diagnostics LED, 16 channel status LEDs, and parameterization functions such as input debounce time and failsafe per channel. This RoHS-compliant and c UL recognized unit measures 50 mm x 107 mm x 41 mm with the interlinking block, weighs 171 g, and functions in ambient temperatures from -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 572607
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 572607.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: (incl. interlinking block) | 50 mm x 107 mm x 41 mm
Product weight: 171 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: IP20
Corrosion resistance class (CRC): 1 - Low corrosion stress | (installed)
LABS (PWIS) conformity: VDMA24364-B2-L
Certication: c UL - Recognized (OL)
Note on materials: RoHS compliant
Housing material: PA-reinforced
LED indicators: 1 group diagnostics | 16 channel status
Diagnostics: Short circuit/overload per channel | Undervoltage of outputs
No. of outputs: 8
Parameterization: Input debounce time | Failsafe per channel | Forcing per channel | Idle mode per channel | Signal extension time | Response to short circuit | Module monitoring
DC operating voltage range: 18 V...30 V
Nominal operating voltage DC: 24 V
Intrinsic current consumption at nominal operating voltage: Type. 15 mA
No. of inputs: 8
Input characteristics: IEC1131-T2, type 01
Switching level: Signal 0: <= 5 V | Signal 1: >= 15 V
Input switching logic: PNP (positive switching)
Input debounce time: 3 ms (0.1 ms, 10 ms, 20 ms parameterizable)
Max. residual current of inputs per module: 1.8 A

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 572607. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
