Festo
572703

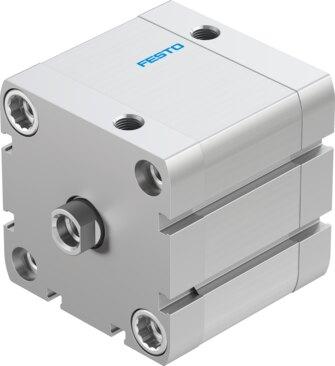

Compact cylinder ADN-63-25-I-PPS-A
The Festo 572703 is a double-acting industrial component conforming to ISO 21287 with a 63 mm piston diameter, a 25 mm stroke, and an M10 internal thread on the piston rod at one end. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a pressure range of 1 bar to 10 bar, this unit features self-adjusting pneumatic end-position cushioning, position sensing via proximity switch, and any mounting position. It delivers a theoretical force of 1750 N retracting and 1870 N advancing at 6 bar, with an ambient temperature range of -20 °C to 80 °C and moderate corrosion stress resistance (CRC 2). Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 572703
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 572703.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 25 mm
- Piston diameter
- 63 mm
- Piston rod thread
- M10
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Piston rod end
- Internal thread
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 4.8 J
- Cushioning length
- 7 mm
- Theoretical force at 6 bar, retracting
- 1750 N
- Theoretical force at 6 bar, advancing
- 1870 N
- Moving mass
- 238 g
- Product weight
- 879 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Flange screws material
- Steel
- Cover material
- Wrought aluminum alloy, anodized
- Seals material
- TPE-U(PUR)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 572703. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
