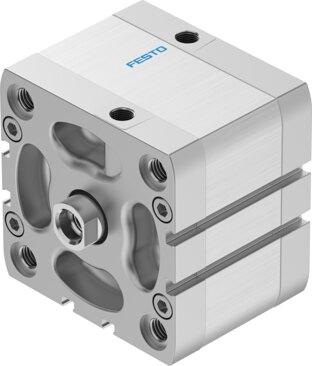

Name: Festo 572720 Compact cylinder ADN-80-20-I-PPS-A
Brand: Festo

Compact cylinder ADN-80-20-I-PPS-A

The Festo part number 572720 is a double-acting industrial component featuring an 80 mm piston diameter, a 20 mm stroke, and an M12 internal thread piston rod at one end conforming to ISO 21287. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a 1 bar to 10 bar pressure range and -20 °C to 80 °C ambient temperature, it delivers a theoretical force of 3016 N advancing and 2827 N retracting at 6 bar. This unit includes self-adjusting pneumatic end-position cushioning with an 8 J impact energy limit, position sensing via proximity switch, and allows operation with oil lubrication. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 572720
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 572720.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 20 mm
Piston diameter: 80 mm
Piston rod thread: M12
Cushioning: Self-adjusting pneumatic end-position cushioning
Mounting position: Any
Conforms to standard: ISO 21287
Piston rod end: Internal thread
Position sensing: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...80 °C
Impact energy in the end positions: 8 J
Cushioning length: 7.5 mm
Theoretical force at 6 bar, retracting: 2827 N
Theoretical force at 6 bar, advancing: 3016 N
Moving mass: 374 g
Product weight: 1193 g
Type of mounting: Alternatively: | With through-hole | With internal thread | With accessories
Pneumatic connection: G1/8
Note on materials: RoHS compliant
Flange screws material: Steel
Cover material: Die-cast aluminum, coated
Seals material: TPE-U(PUR)
