Festo
572726

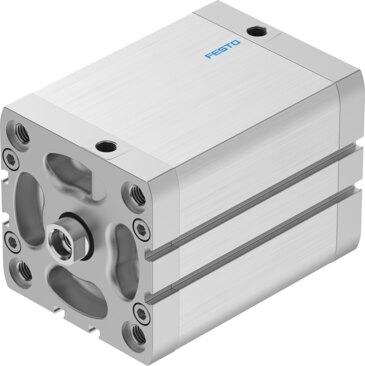

Compact cylinder ADN-80-80-I-PPS-A
The Festo 572726 is a double-acting industrial component conforming to ISO 21287, featuring an 80 mm piston diameter, an 80 mm stroke, and an internal M12 piston rod thread at one end. It operates within a pressure range of 1 bar to 10 bar using compressed air as per ISO 8573-1:2010 [7:4:4], delivering a theoretical advancing force of 3016 N and a retracting force of 2827 N at 6 bar. This unit incorporates self-adjusting pneumatic end-position cushioning with an 8 J impact energy limit, 7.5 mm cushioning length, proximity switch position sensing, and can be mounted in any position within an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 572726
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 572726.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 80 mm
- Piston diameter
- 80 mm
- Piston rod thread
- M12
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Piston rod end
- Internal thread
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 8 J
- Cushioning length
- 7.5 mm
- Theoretical force at 6 bar, retracting
- 2827 N
- Theoretical force at 6 bar, advancing
- 3016 N
- Moving mass
- 525 g
- Product weight
- 1671 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Flange screws material
- Steel
- Cover material
- Die-cast aluminum, coated
- Seals material
- TPE-U(PUR)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 572726. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
