572728

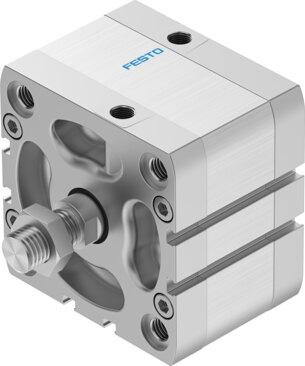

Name: Festo 572728 Compact cylinder ADN-80-15-A-PPS-A
Brand: Festo

Compact cylinder ADN-80-15-A-PPS-A

The Festo 572728 is a double-acting industrial component featuring an 80 mm piston diameter and a 15 mm stroke conforming to ISO 21287, equipped with an external M16x1.5 piston rod thread at one end. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 1 bar to 10 bar pressure range, this unit delivers a theoretical retracting force of 2827 N and advancing force of 3016 N at 6 bar. It incorporates self-adjusting pneumatic end-position cushioning with a 7.5 mm cushioning length and 8 J end-position impact energy, alongside proximity switch position sensing and universal mounting position capability. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 572728
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 572728.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 15 mm
Piston diameter: 80 mm
Piston rod thread: M16x1.5
Cushioning: Self-adjusting pneumatic end-position cushioning
Mounting position: Any
Conforms to standard: ISO 21287
Piston rod end: External thread
Position sensing: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...80 °C
Impact energy in the end positions: 8 J
Cushioning length: 7.5 mm
Theoretical force at 6 bar, retracting: 2827 N
Theoretical force at 6 bar, advancing: 3016 N
Moving mass: 490 g
Product weight: 1282 g
Type of mounting: Alternatively: | With through-hole | With internal thread | With accessories
Pneumatic connection: G1/8
Note on materials: RoHS compliant
Flange screws material: Steel
Cover material: Die-cast aluminum, coated
Seals material: TPE-U(PUR)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 572728. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
