Festo
572730

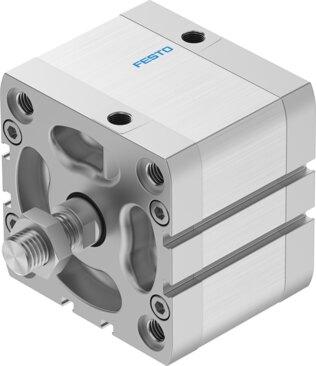

Compact cylinder ADN-80-25-A-PPS-A
The Festo 572730 is a double-acting industrial component conforming to ISO 21287, featuring an 80 mm piston diameter and a 25 mm stroke with an external M16x1.5 piston rod thread at one end. Designed for operation within a pressure range of 1 bar to 10 bar and an ambient temperature span from -20 °C to 80 °C, this unit utilizes self-adjusting pneumatic end-position cushioning and supports position sensing via proximity switch. It delivers theoretical forces of 2827 N retracting and 3016 N advancing at 6 bar while providing a corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 572730
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 572730.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 25 mm
- Piston diameter
- 80 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Piston rod end
- External thread
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 8 J
- Cushioning length
- 7.5 mm
- Theoretical force at 6 bar, retracting
- 2827 N
- Theoretical force at 6 bar, advancing
- 3016 N
- Moving mass
- 515 g
- Product weight
- 1361 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Flange screws material
- Steel
- Cover material
- Die-cast aluminum, coated
- Seals material
- TPE-U(PUR)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 572730. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
