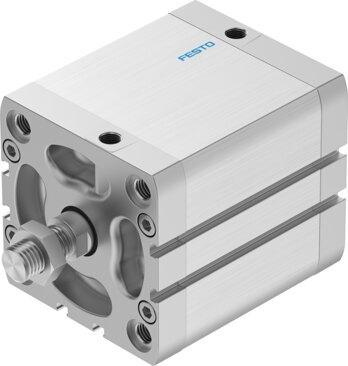

Name: Festo 572734 Compact cylinder ADN-80-60-A-PPS-A
Brand: Festo

Compact cylinder ADN-80-60-A-PPS-A

The Festo 572734 is a double-acting industrial component conforming to ISO 21287 featuring an 80 mm piston diameter, a 60 mm stroke, and an M16x1.5 external piston rod thread at one end. Designed for an operating pressure range of 1 bar to 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4], it delivers theoretical forces of 2827 N retracting and 3016 N advancing at 6 bar. This unit incorporates self-adjusting pneumatic end-position cushioning with an 8 J impact energy limit, position sensing via proximity switch, and operates in ambient temperatures from -20 °C to 80 °C in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 572734
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 572734.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 60 mm
Piston diameter: 80 mm
Piston rod thread: M16x1.5
Cushioning: Self-adjusting pneumatic end-position cushioning
Mounting position: Any
Conforms to standard: ISO 21287
Piston rod end: External thread
Position sensing: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...80 °C
Impact energy in the end positions: 8 J
Cushioning length: 7.5 mm
Theoretical force at 6 bar, retracting: 2827 N
Theoretical force at 6 bar, advancing: 3016 N
Moving mass: 603 g
Product weight: 1640 g
Type of mounting: Alternatively: | With through-hole | With internal thread | With accessories
Pneumatic connection: G1/8
Note on materials: RoHS compliant
Flange screws material: Steel
Cover material: Die-cast aluminum, coated
Seals material: TPE-U(PUR)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 572734. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
