Festo
573061

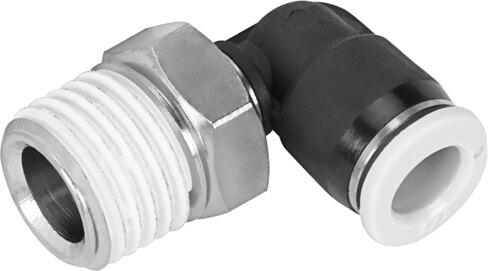

Push-in L-fitting QBML-1/4-1/4-U
This Festo 573061 industrial component is an L-shaped mini pneumatic fitting featuring a 1/4 NPT external thread and a connection for 1/4" outer diameter pneumatic tubing utilizing a push-pull design. It operates within a pressure range of -13.775 psi to 145 psi and an ambient temperature range of 32 °F to 140 °F using compressed air per ISO 8573-1:2010 [7:-:-], with lubricated operation possible. The part incorporates a coated screwed plug, an external hexagon 9/16 mounting, a gray releasing ring, a corrosion resistance class of 1, and weighs 0.811 oz in a pack size of 10. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573061
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573061.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 0.118 in
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 0.811 oz
- Type of mounting
- External hexagon 9/16
- Pneumatic connection 1
- external thread 1/4 NPT
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Material of threaded seal
- PTFE
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 573061. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
