Festo
573064

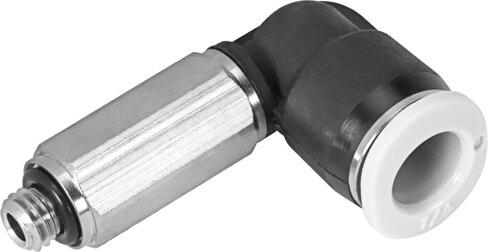

Push-in L-fitting, long QBMLL-10-32-UNF-1/4-U
The Festo 573064 is a mini L-shape long industrial component featuring a 0.098 in nominal width, a 10-32 UNF-2A external thread pneumatic connection 1, and a pneumatic connection 2 for a 1/4" outer diameter tubing utilizing a push-pull structural design. Designed with a sealing ring on the screwed plug and an external hexagon 5/16 mounting type, this part operates across a temperature range of 32 °F to 140 °F and a pressure range of -13.775 psi to 145 psi with compressed air per ISO 8573-1:2010 [7:-:-]. Each pack size contains 10 units, weighing 0.317 oz each with a maximum tightening torque of 1.11 ft-lbf and a gray releasing ring. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573064
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573064.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 0.098 in
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- L-shape, long
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Max. tightening torque
- 1.11 ft-lbf
- Product weight
- 0.317 oz
- Type of mounting
- External hexagon 5/16
- Pneumatic connection 1
- External thread 10-32 UNF-2A
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 573064. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
