Festo
573071

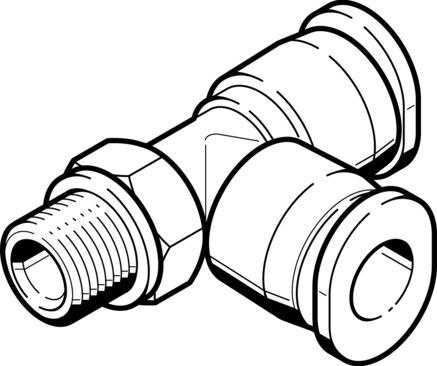

Push-in T-fitting QBMTL-10-32-UNF-1/4-U
The Festo 573071 is a mini L-shaped industrial component featuring an external thread 10-32 UNF-2A pneumatic connection 1 and a 1/4" outer diameter pneumatic tubing connection 2, designed with a push-pull principle and a gray releasing ring. This unit operates within a pressure range of -13.775 psi to 145 psi and a temperature span of 32 °F to 140 °F using compressed air conforming to ISO 8573-1:2010 [7:-:-]. Supplied in a pack size of 10 with a product weight of 0.353 oz each, the assembly utilizes an external hexagon 5/16 for mounting at a maximum tightening torque of 1.11 ft-lbf in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573071
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573071.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 0.098 in
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- L-shape, additional push-in connector, lengthwise
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Max. tightening torque
- 1.11 ft-lbf
- Product weight
- 0.353 oz
- Type of mounting
- External hexagon 5/16
- Pneumatic connection 1
- External thread 10-32 UNF-2A
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 573071. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
