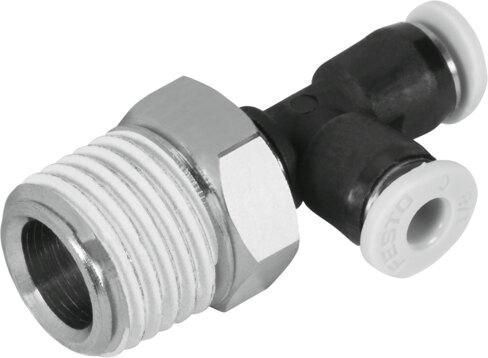

Reference imageConfirm configuration by manufacturer part number.
Festo
573072
Push-in T-fitting QBMTL-1/8-1/4-U
The Festo 573072 is a mini L-shaped industrial component featuring an external hexagon 7/16 mounting, a 1/8 NPT external thread pneumatic connection 1, and a pneumatic connection 2 for 1/4" outer diameter tubing utilizing a push-pull structural design with a gray releasing ring and a coated screwed plug seal. This RoHS-compliant part supports any mounting position, an operating pressure range of -13.775 psi to 145 psi, an ambient temperature range of 32 °F to 140 °F, and compressed air operating medium per ISO 8573-1:2010 [7:-:-] with lubricated operation capability. Weighing 0.564 oz with a nominal width of 0.118 in, the component has a corrosion resistance class of 1 and VDMA24364 Zone III LABS conformity, and is supplied in a pack size of 10. Submit part number 573072, desired quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573072
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573072.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 0.118 in
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- L-shape, additional push-in connector, lengthwise
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 0.564 oz
- Type of mounting
- External hexagon 7/16
- Pneumatic connection 1
- external thread 1/8 NPT
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Material of threaded seal
- PTFE
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
