Name: Festo 573183 Electrical interface VMPA-ASI-EPL-E-8E8A-CE
Brand: Festo

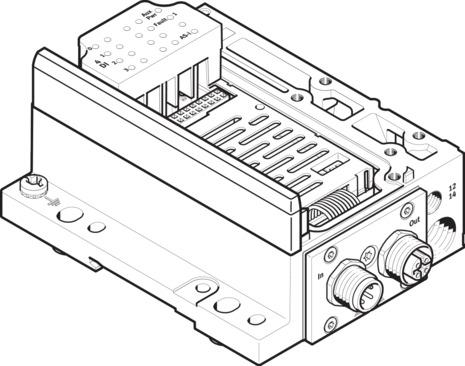

Electrical interface VMPA-ASI-EPL-E-8E8A-CE

The Festo part number 573183 is an industrial component measuring 85 mm in width, 122.9 mm in length, and 55.1 mm in height with an IP20 degree of protection and a corrosion resistance class of 1. It features an AS-Interface DC operating voltage range of 26.5 V to 31.6 V, a DC load voltage operating voltage range of 21.6 V to 26.4 V, M12 socket and plug fieldbus interfaces, and device-specific diagnostics covering AS-i voltage, AS-i address, watchdog/I/O status, and additional supply missing or undervoltage. The unit supports a maximum of 8 valve positions, 8 digital inputs with a typical response delay of 3 ms at 24 V, and 2 slaves per device. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 573183
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 573183.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: 85 mm x 122.9 mm x 55.1 mm
Fieldbus interface: Socket, M12 (AS-i Out) | Plug, M12 (AS-i In)
Device-specic diagnostics: AS-i voltage | AS-i address | Watchdog/I/O status | Additional supply missing or undervoltage
Max. no. of valve positions: 8
Response delay inputs: Typ. 3 ms at 24 V
Number of slaves per device: 2
Operating voltage range DC electronics/sensors: US+ / US- : <= AS-interface bus voltage - 2.5V
AS-Interface DC operating voltage range: 26.5 V...31.6 V
DC load voltage operating voltage range: 21.6 V...26.4 V
Information concerning load voltage: Via load voltage connection (24 V DC)
Logic level digital inputs: ON: 11 - 30V | OFF: -30 - 5V
Max. number of inputs: 8
AS interface residual ripple: <= 20 mVss
Load voltage residual ripple: 4 Vss
Current consumption with load voltage from AS-Interface and load: Max. total current at inputs 350 mA
voltage connection: Max. total current at outputs MPA1: 540 mA | Max. total current at outputs MPA2: 1065 mA
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...40 °C
Degree of protection: IP20
Ambient temperature: -5 °C...50 °C
Product weight: 360 g
Input characteristics: As per IEC 1131-2, type 02
Input switching logic: PNP (positive switching)
Addressing range: 1A ... 31A | 1B ... 31B
LED display (bus-specic): AS-i: AS-Interface operation | Aux/Pwr: AS-Interface power supply

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 573183. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
