573186

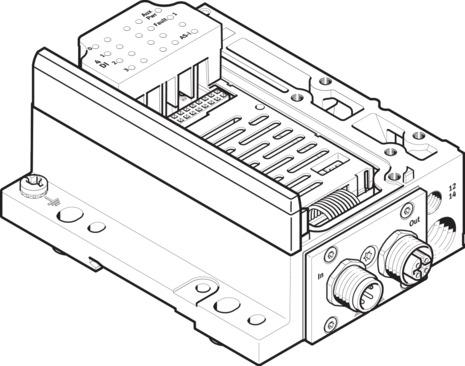

Name: Festo 573186 Electrical interface VMPA-ASI-EPL-GU-8E8A-CE
Brand: Festo

Electrical interface VMPA-ASI-EPL-GU-8E8A-CE

The Festo industrial component 573186 features dimensions of 85 mm by 122.9 mm by 55.1 mm, an IP20 degree of protection, and a corrosion resistance class of CRC 1 for low corrosion stress. Equipped with M12 socket AS-i Out and M12 plug AS-i In fieldbus interfaces, this device supports up to 8 valve positions, a maximum of 8 inputs, and 2 slaves per device with an AS-Interface DC operating voltage range of 26.5 V to 31.6 V. It provides device-specific diagnostics for AS-i voltage, AS-i address, watchdog/I/O status, and missing or undervoltage conditions while operating within a temperature range of -20 °C to 40 °C. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 573186
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 573186.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: 85 mm x 122.9 mm x 55.1 mm
Fieldbus interface: Socket, M12 (AS-i Out) | Plug, M12 (AS-i In)
Device-specic diagnostics: AS-i voltage | AS-i address | Watchdog/I/O status | Additional supply missing or undervoltage
Max. no. of valve positions: 8
Response delay inputs: Typ. 3 ms at 24 V
Number of slaves per device: 2
Operating voltage range DC electronics/sensors: US+ / US- : <= AS-interface bus voltage - 2.5V
AS-Interface DC operating voltage range: 26.5 V...31.6 V
DC load voltage operating voltage range: 21.6 V...26.4 V
Information concerning load voltage: Via load voltage connection (24 V DC)
Logic level digital inputs: ON: 11 - 30V | OFF: -30 - 5V
Max. number of inputs: 8
AS interface residual ripple: <= 20 mVss
Load voltage residual ripple: 4 Vss
Current consumption with load voltage from AS-Interface and load: Max. total current at inputs 350 mA
voltage connection: Max. total current at outputs MPA1: 540 mA | Max. total current at outputs MPA2: 1065 mA
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...40 °C
Degree of protection: IP20
Ambient temperature: -5 °C...50 °C
Product weight: 360 g
Input characteristics: As per IEC 1131-2, type 02
Input switching logic: PNP (positive switching)
Addressing range: 1A ... 31A | 1B ... 31B
LED display (bus-specic): AS-i: AS-Interface operation | Aux/Pwr: AS-Interface power supply
