Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
573194

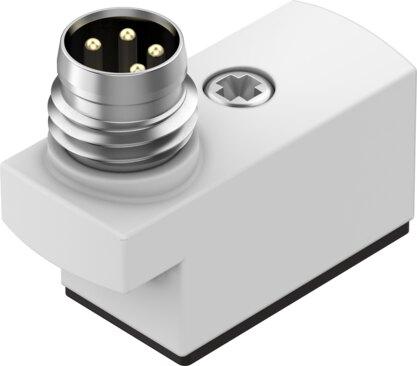

Adapter VAVE-C8-1R1
The Festo 573194 is an industrial component featuring an LED signal status display and a nominal operating voltage of 24 V DC. Constructed with a PA housing and bronze pin contacts, this RoHS-compliant part offers a CRC rating of 2 for moderate corrosion stress, an IP65 degree of protection, and an operating ambient temperature range of -5 °C to 60 °C. It includes 4-pin and 2-pin M8 plug and socket electrical connections, mounts onto an air solenoid valve via an M2 central screw in any position using a 0.25 Nm tightening torque, and weighs 3.5 g. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573194
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573194.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Signal status display
- LED
- Nominal operating voltage DC
- 24 V
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | As per IEC 60529
- Ambient temperature
- -5 °C...60 °C
- Mounting position
- Any
- Tightening torque
- 0.25 Nm
- Product weight
- 3.5 g
- Electrical connection
- 4-pin / 2-pin | M8 / - | Plug / socket
- Protective earth connection
- Not available
- Type of mounting
- On air solenoid valve with M2 central screw
- Note on materials
- RoHS compliant
- Housing material
- PA
- Material of pin contacts
- Bronze
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 573194. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
